You'll find multiple ESD-safe storage solutions to protect your sensitive electronics tools. Consider conductive foam organizers, static dissipative tool rolls, and ESD-safe portable carriers for mobile work. Install grounded metal cabinets or shielded storage units for larger collections. Anti-static mat storage areas and ESD workbench drawers offer convenient access while maintaining protection. Utilize static-safe hanging tool panels, conductive polypropylene boxes, and compartmentalized bins for organized storage. Whether you need portable or fixed solutions, you'll discover options that combine security with proper static protection. Let's explore these protective storage methods in detail.
ESD-Safe Tool Organizer Boxes
Three essential features define ESD-safe tool organizer boxes: their conductive materials, adjustable configurations, and static-dissipating properties. These boxes are manufactured from specialized polypropylene and conductive plastics, maintaining surface resistivity between 10^3 to 10^9 ohms to effectively dissipate static charges.
They can withstand temperatures from -20°C to +100°C, making them suitable for various environments. Regular maintenance of these organizers helps prevent dust buildup and ensures optimal static protection.
When you're working with sensitive electronics, these organizers offer critical protection while enhancing your productivity. They're built with double wall conductive plastic and wire rim reinforcement, ensuring durability for long-term use.
You can customize the internal layout using rigid partitions and adjustable cells to accommodate your specific tool sizes and quantities.
These boxes are particularly valuable in electronics assembly, laboratories, and medical environments where static control is vital. They comply with ANSI ESD-S20.20 standards and feature practical design elements like recessed handles for safe transport.
Whether you're storing components short-term or long-term, these organizers provide reliable static protection while keeping your tools organized and readily accessible. The combination of durability, flexibility, and safety makes them indispensable for professional electronics work.
Conductive Foam Storage Systems
When setting up your electronics tool storage system, you'll want to use high-density conductive foam (40-125kg/m³) to create secure, static-safe compartments for your precision instruments.
Position your tools vertically in the foam at least 1-2cm apart to prevent contact and maintain proper grounding through the conductive material. The foam's excellent electromagnetic shielding effect helps protect sensitive components during storage and handling.
For maximum protection, guarantee each tool cavity is cut precisely to match the tool's dimensions, allowing the foam's closed-cell structure to grip the tool while maintaining consistent contact for static dissipation.
Professional Foam Usage Methods
Professional conductive foam systems represent a critical line of defense against static damage in electronics storage and handling. You'll find these specialized materials particularly effective when you're working with sensitive electronic components like ICs and circuit boards. To maximize protection, you should always combine conductive foam with static shielding bags, as the foam itself won't shield against external ESD sources. The high-quality conductive material ensures reliable dissipation of potentially harmful static charges.
When selecting and using conductive foam, consider these key specifications:
| Thickness (mm) | Best Applications | Protection Level |
|---|---|---|
| 0.5 – 2.0 | Mobile Components | Standard |
| 2.1 – 5.0 | Circuit Boards | Enhanced |
| 5.1 – 20.0 | Large Electronics | Premium |
| 20.1 – 50.0 | Heavy Equipment | Maximum |
| 50.1 – 100.0 | Custom Solutions | Ultra |
You'll want to guarantee your foam has a surface resistance of less than 10^6 ohms/cms for ideal static discharge. When storing components, avoid direct contact between sensitive devices and the foam. Instead, use IC tubes for dual mechanical and ESD protection. Remember that you can customize the foam's size and shape to fit your specific storage needs while maintaining its protective properties.
Ideal Density Requirements
Understanding the correct density requirements for conductive foam storage systems will directly impact your components' protection level. When selecting storage foam, you'll need to match the density to your specific electronic tool requirements and handling conditions.
For the best protection of your electronic tools, consider these key density specifications:
- Choose polyurethane foam (1.7-1.9 lbs density) for general electronics storage and circuit cards that need cushioning with static protection – it's the most versatile option with its soft, open-cell structure.
- Select polyethylene foam (1.99 lbs density) when you need rigid support for tools and components that require firm positioning or frequent handling.
- Opt for memory foam (4.8-5.2 lbs density) when storing highly sensitive or expensive components that need custom-formed protection against shock and vibration.
The superior dust sealing capabilities of conductive foam make it particularly effective for keeping sensitive electronics clean during long-term storage.
You'll find that crosslink polyethylene foam, ranging from 2.2 to 4 lbs density, works well for specialized applications where you need enhanced durability and chemical resistance.
Remember that higher density doesn't always mean better protection – it's about matching the foam's properties to your specific storage needs while maintaining proper static dissipation levels.
Tool Positioning Guidelines
Proper tool positioning within conductive foam storage systems plays a critical role in maintaining both protection and accessibility. When placing your tools, you'll need to think about both the high-density and low-density foam options for the best protection.
Insert "legged" components into high-density foam to guarantee all pins are properly shorted out, preventing potential differences that could cause damage. The resistance range 10^3-10^5 of conductive foam ensures optimal ESD protection for sensitive components.
For your larger tools and components, you'll want to use low-density conductive foam, as it provides better cushioning and flexibility. Position your items so they're not touching each other, allowing the foam to fully envelop each tool and provide maximum static protection.
If you're storing circuit boards or hard disk drives, guarantee they're placed horizontally in the low-density foam to distribute weight evenly.
Remember to think about the foam's thickness when positioning your tools. You can select from 0.5 to 100 mm thicknesses to accommodate different tool sizes.
For the best protection, your tools should sink into the foam enough to guarantee good contact with the conductive material but not so deep that they're difficult to retrieve. This positioning maximizes the foam's EMI shielding and shock absorption properties while maintaining easy access to your tools.

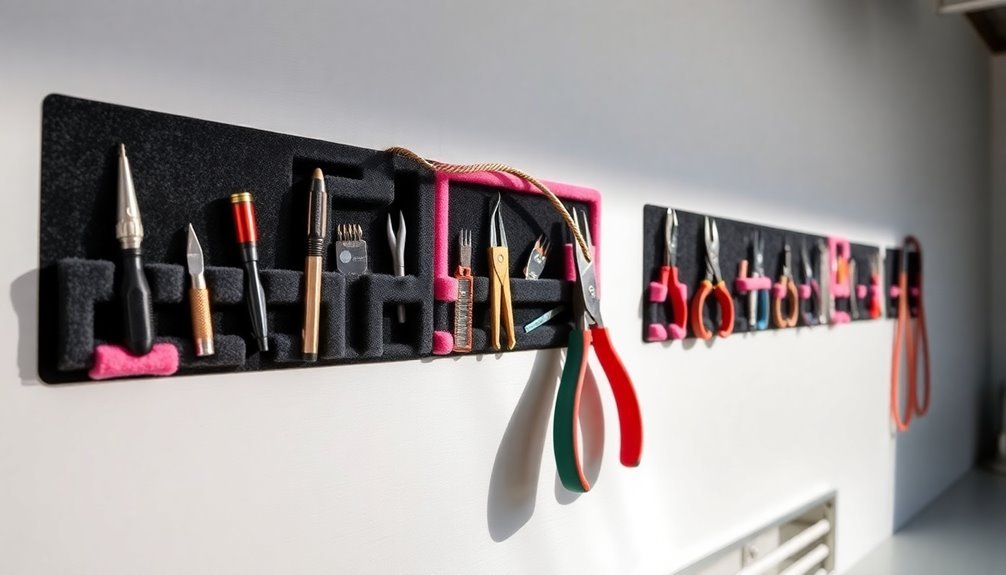

Static-Safe Hanging Tool Panels
Setting up static-safe hanging tool panels calls for careful attention to both material selection and design implementation. When choosing materials, you'll want to prioritize high resistance dissipative surfaces for the best static protection. While wood panels can work with proper grounding and static dissipative coatings, conductive materials like injection-molded plastic offer permanent ESD protection. The panels can be coated with static dissipative paint similar to what's used on steel cabinets for optimal protection.
For a secure and effective setup, consider these critical elements:
- Install french-cleat systems to provide adjustable, secure mounting while guaranteeing your panels won't accidentally detach.
- Position tools at ergonomic heights and angles to reduce static discharge risks during handling.
- Incorporate ESD-safe bins and magnetic holders to keep components organized and protected.
You'll need to maintain your panels regularly to maintain continued static protection. Clean surfaces frequently to preserve their dissipative properties, and inspect both panels and tools for signs of wear.
Don't forget to train your operators on proper ESD safety protocols, including the consistent use of wrist straps when handling electronic components. Remember to mount your panels at appropriate heights to prevent tools from falling while keeping them easily accessible for your work needs.
Grounded Metal Storage Cabinets
A well-grounded metal storage cabinet serves as your first line of defense against static electricity when storing electronic tools and components. You'll need to make certain your cabinet features static dissipative coatings and multiple grounding lug locations to effectively protect sensitive equipment from ESD damage. While grounding is not required by NFPA 30 standards, it provides important protection for sensitive electronics.
| Feature | Purpose |
|---|---|
| Static Dissipative Coating | Prevents static buildup on surfaces |
| Grounding Lugs | Provides connection points for ground wires |
| Wrist Strap Points | Enables personal grounding during access |
When selecting and installing your storage cabinet, you'll want to have an electrician verify proper grounding connections. Regular maintenance checks are vital – inspect for rust, dirt, or other impediments that could compromise your ground circuit's effectiveness. Make sure you're testing ground connections to maintain resistance at 1 megohm or less.
Don't store your electronic tools in ungrounded metal cabinets, as this creates unnecessary risks for both equipment damage and electrical interference. Instead, opt for ESD-safe cabinets with removable doors and static dissipative shelves. You can customize these solutions to match your specific storage needs while maintaining complete static protection throughout your workspace.
ESD Workbench Drawer Solutions
Modern ESD workbench drawer solutions combine essential static protection with ergonomic functionality for electronics handling. You'll find these workbenches equipped with high-quality laminate tops featuring embedded carbon layers that effectively dissipate static electricity while meeting resistance standards of 1.0 x 10^6 < 1.0 x 10^9 ohms.
When selecting an ESD workbench drawer system, you'll discover various options like the Alliance Series for enterprise needs or the GAMMA Series with hidden technical communications. These systems can be enhanced with modular components to meet specific requirements and working conditions.
These solutions offer adjustable height settings ranging from 600-1300mm and can support loads up to 5,000 pounds for heavy-duty applications.
Here's what makes these systems particularly effective:
- Modular drawer units that maximize storage efficiency while maintaining easy access to tools and components
- Integrated features like overhead LED lighting, power strips, and utility ducts for air and data
- Ergonomic additions including footrests and monitor arms that enhance worker comfort
You can customize your ESD workbench with organizational accessories while maintaining vital static protection. The combination of durability, compliance with ESD standards, and practical storage solutions makes these systems ideal for electronics handling environments where static control is essential.
Conductive Plastic Tool Cases
When selecting conductive plastic tool cases, you'll want to think about the layer design options that best suit your storage needs, from single-level compartments to multi-tiered configurations.
You can enhance your tool case's protective capabilities by choosing from various foam insert options, including custom-cut, pre-scored, and conductive foam varieties.
These foam inserts work in harmony with the conductive plastic exterior to provide complete ESD protection while keeping your tools organized and secure.
Foam Insert Options
- Custom-Cut Foam: This is a more heavy-duty and professional solution. There's no manual labour on your part, and your foam insert is ready to use from the day you receive it. Custom cut foam makes use of advanced computer-controlled cutting technology, resulting in a highly polished and professional foam insert. The inserts are tailored to the exact dimensions of your tools and toolbox, offering a premium and precise fit that grips your tools securely.
- PROS: Durable. Timesaving. Precise. Looks Professional. Water, oil, and hydraulic fluid resistant.
- CONS: Costs more than DIY foam. The foam cannot be easily adjusted or reshaped once cut, so future changes to your tool layout would require a new insert.
- Pre-Scored Foam: This type of foam is less common but can be used for general applications where a custom fit is not necessary.
- Conductive Foam: This is particularly useful for static-sensitive components. Conductive foam can be combined with conductive plastic cases to ensure full ESD protection. For example, conductive plastic cases made from materials like black conductive polypropylene are designed to protect electronic components from static damage.
Conductive Plastic Cases
Conductive plastic cases are often made from materials like black conductive polypropylene, which is specially compounded with a conductivity enhancer. These cases are appropriate for storing static-sensitive components such as electronics. They can come with various features like articulating hinges, snap closures, and multiple compartments to keep tools organized.
Additional Considerations
- Multi-Tiered Configurations: Some cases offer multiple levels of storage, allowing for better organization and access to tools. For instance, cases with multiple compartments or drawers can help in categorizing tools based on their usage or type.
- Customisation Options: Custom CNC-cut foams offer the option to choose the preferred density of the foam and its color, providing a truly custom product tailored to your budget and taste. You can also combine two different foam layers to form a shadow foaming effect, making it easier to identify when tools are missing.
Tool Case Layer Designs
Inside today's specialized conductive plastic tool cases, multiple layers of protective materials work together to shield sensitive electronic components from static discharge.
You'll find these cases incorporate high-density conductive polyethylene with impressive tensile strength of 3,500 psi and compressive strength of 2,700 psi, guaranteeing both protection and durability.
The layered design approach offers you thorough static protection through:
- Full-length lift-out trays measuring 12 1/4" x 4 3/4" x 1 1/2" for organized tool storage
- Adjustable PC board holders with ribbed divider systems for customizable compartmentalization
- Conductive fiberboard and antistatic polypropylene layer pads for additional protection
You can customize these layers based on your specific needs, with manufacturers offering sheets up to 4 x 8 ft and thicknesses ranging from 0.030" to 0.375".
The layer construction creates a Faraday cage effect, effectively shielding your tools and components from external electrostatic fields.
When you're working with sensitive electronics like CMOS and MOS components, these layered designs guarantee instant static dissipation while resisting most chemicals, solvents, and acids.
Protective Foam Insert Options
Selecting the right protective foam insert proves essential for your electronic tool storage needs, with multiple specialized options available to match specific protection requirements.
You'll find three main types of protective foam: conductive, anti-static, and static dissipative, each offering distinct advantages for your tools.
Conductive foam delivers the highest level of protection by creating a complete Faraday cage around your tools, effectively shielding them from static electricity. This black foam prevents static buildup and provides thorough ESD protection.
If you don't need full shielding, anti-static foam prevents static accumulation, while static dissipative foam allows for controlled discharge of static electricity.
You can customize your foam inserts to perfectly match your tool collection. Whether you're storing precision screwdrivers or diagnostic equipment, you'll find options for custom-stamped inserts that mirror the exact shape of your tools.
It's important to regularly inspect your foam inserts, as their protective properties can diminish over time.
When selecting storage solutions, consider collapsible bin boxes and totes – they'll protect your tools while saving space and reducing shipping costs.
Anti-Static Mat Storage Areas
Throughout a well-designed electronics workspace, anti-static mat storage areas serve as essential zones for safely handling and protecting sensitive components. When you're setting up these areas, it's vital to guarantee proper grounding connections and maintain a controlled environment that prevents static buildup.
Your mat storage zone should incorporate both desktop and floor configurations to accommodate different handling needs while providing consistent ESD protection.
To maximize the effectiveness of your anti-static mat storage area, focus on these key elements:
- Establish a dedicated grounding point for each mat, connecting it directly to your facility's ground or equipment chassis.
- Maintain proper humidity levels (40-60%) in the storage space to naturally reduce static electricity generation.
- Keep your mat storage area clean and organized with ESD-safe containers and anti-static bags nearby.
You'll want to integrate your anti-static mat storage area with complementary ESD protection measures. Use conductive storage solutions like antistatic polypropylene layer pads and bin boxes for components that aren't actively being handled.
ESD-Safe Portable Tool Carriers
A well-equipped electronics technician needs reliable ESD-safe portable tool carriers to protect sensitive components during transport and field work.
You'll find these carriers made from conductive polypropylene that maintains its static-dissipative properties even after cleaning. The materials are specifically designed to prevent static buildup that could damage sensitive electronic equipment.
You can choose from several types of ESD-safe carriers. Toolboxes come with heavy-duty handles and secure latches, making them ideal for mobile work.
If you're working in a data center or manufacturing facility, you'll want to think about conductive storage bins that offer stackable options and hanging capabilities.
For technicians on the go, ESD bags provide zippered compartments and multiple pockets for organized tool storage.
When you're concerned about storage space, collapsible conductive totes are your best option as they fold flat when not in use.
All these carriers feature surface resistivity ratings as low as 6 and meet industrial-grade standards for static safety. They're built to withstand regular use while maintaining their protective properties, ensuring your tools and components remain safe from electrostatic discharge throughout their transport and storage.
Shielded Component Storage Units
While portable carriers protect tools during transport, shielded storage units provide a permanent home base for your sensitive electronic components. You'll find various options designed specifically for ESD protection, from static dissipative cabinets to specialized safes with advanced security features.
These units combine protection against electrostatic discharge with secure storage capabilities, ensuring your valuable components remain safe and functional.
When selecting a shielded storage unit, you'll want to evaluate these critical features:
- ESD-safe materials with bonded dissipative layers that maintain surface resistivity and protect against static damage
- Security mechanisms including fingerprint scanners, keypad entry, and heavy-duty locks to prevent unauthorized access
- Customizable interior configurations with adjustable shelving to maximize space efficiency and accommodate different component sizes
For maximum protection, you can choose from stainless steel or polypropylene cleanroom-grade cabinets that offer both chemical resistance and static dissipation. Many units also include additional features like UV sterilization capabilities and humidity control through desiccator systems.
If you're working with radiation-sensitive components, lead-lined storage options provide an extra layer of protection while maintaining ESD-safe properties.
Static Dissipative Tool Rolls
When choosing a static dissipative tool roll, you'll need to verify it's constructed with ESD-safe materials that meet industry standards for static protection.
Your tool roll should incorporate conductive fabric lining and proper grounding points to guarantee consistent static dissipation during tool storage and handling.
The compartment layout must feature adequate spacing and secure closures to prevent tools from shifting or making contact with each other, maintaining both organization and ESD safety.
Tool Roll Material Requirements
Static dissipative tool rolls require specific material properties to protect sensitive electronic components during storage and transport. These specialized rolls are typically constructed of durable blue vinyl with a buried conductive layer that guarantees consistent static dissipation.
The material must meet ANSI/ESD S4.1 standards, maintaining a resistance range (Rtt) of 1×10⁴ to <1×10¹¹ ohms.
When selecting a tool roll for electronics work, you should consider these critical requirements:
- Static dissipative properties that keep tools and components at the same electrical potential
- Flexible, durable construction that withstands repeated rolling and unrolling
- Hook and loop closure system that securely contains up to 18 tools
The material's thickness should be substantial enough to provide protection while maintaining flexibility for easy rolling. While specific chemical resistance data isn't always provided, you'll want to guarantee the material can withstand exposure to common workplace substances.
The construction should incorporate a high-performance static dissipative fabric that maintains its protective properties throughout its service life, making it suitable for electronics manufacturing, repair, and field service applications.
Compartment Design For Safety
In accordance with industry safety standards, the compartment design of static dissipative tool rolls prioritizes both protection and accessibility. With 18 dedicated tool pockets, you'll find efficient organization for your essential equipment while maintaining critical ESD protection through the roll's specialized static dissipative fabric and buried conductive layer.
When you unroll the 20" x 12.5" storage system, you'll notice how the compartments are strategically designed to accommodate various tools, from precision cutters to pliers.
The hook and loop closure system guarantees your tools stay securely in place, preventing accidental drops or contact damage. You'll appreciate how the surface resistance of 1 x 10^4 to < 1 x 10^11 ohms meets ANSI/ESD S4.1 requirements, effectively dissipating static charges that could harm sensitive components.
This compartment design is particularly valuable if you're working in electronics, automotive, or other static-sensitive industries.
When you're finished with your work, the roll-up feature allows for compact storage while maintaining the ESD protection your tools need. For field service technicians and maintenance personnel, this design combines practical organization with essential static safety measures.
Frequently Asked Questions
How Long Does ESD Protection Last in Storage Containers Before Needing Replacement?
You'll need to replace ESD storage containers based on usage, testing, and manufacturer guidelines. With proper care, they can last 2-5 years, but you should inspect them regularly for damage or reduced effectiveness.
Can Regular Tool Boxes Be Converted to Esd-Safe Storage Solutions?
While you can modify regular tool boxes with conductive materials, it's not recommended. You'll find it costly and difficult to meet ESD safety standards. It's better to invest in purpose-built ESD-safe storage solutions.
What Humidity Levels Are Optimal for Static-Safe Storage Environments?
You'll want to maintain humidity levels between 40% and 60% RH for ideal static-safe storage. This range helps prevent ESD by lowering surface resistance, while avoiding moisture-related damage to your stored components.
Do Temperature Fluctuations Affect the Effectiveness of ESD Storage Materials?
While temperature fluctuations don't directly impact ESD storage materials' static-dissipating properties, you'll need to monitor them carefully as they can cause physical damage to your components through moisture buildup and mechanical stress.
How Often Should ESD Storage Containers Be Tested for Conductivity?
You'll need to test ESD storage containers quarterly or semi-annually, depending on your usage and environment. For high-risk areas like shipping docks or cleanrooms, you should increase testing frequency to monthly checks.
In Summary
You've got plenty of options to keep your electronics tools protected from static damage. Whether you choose a basic anti-static mat or invest in a complete ESD-safe storage system, it's vital to implement at least one of these solutions in your workspace. Don't risk damaging sensitive components – pick the storage method that fits your needs and budget, and you'll extend the life of both your tools and projects.
