When you're protecting sensitive electronics, you'll want to invest in a reliable ESD monitoring system. The single-wire continuous monitoring system offers a cost-effective solution with essential protection features. For enhanced accuracy, consider the dual-wire workstation protection system with its fail-safe design. Premium data-logging monitors provide thorough tracking for larger operations, while surface resistance monitoring equipment delivers precise measurements for specialized needs. The multi-user ESD control center stands out for facilities requiring extensive monitoring capabilities. Understanding the unique features of each system will help you make the best choice for your operation.
Single-Wire Continuous Monitoring Systems

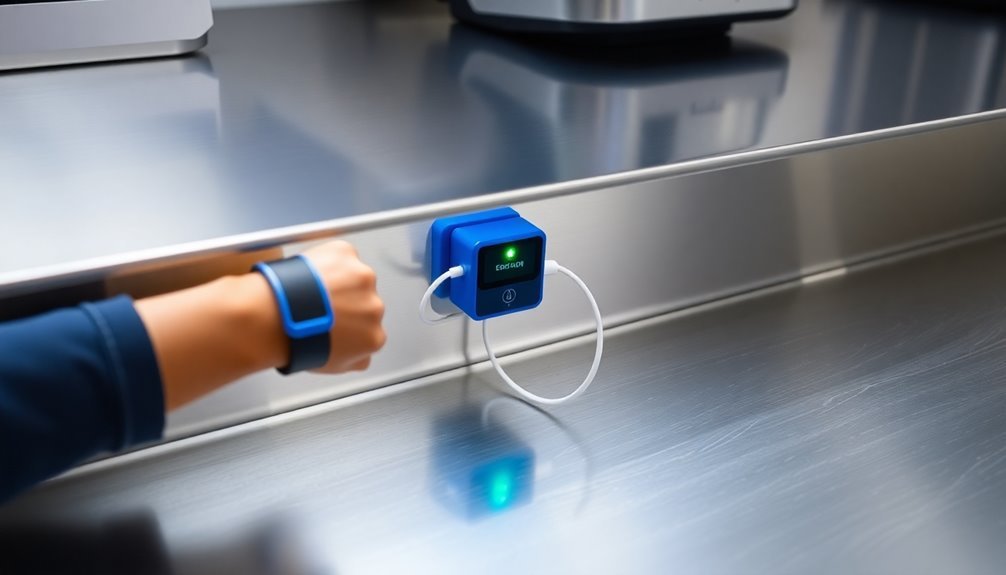

Single-wire continuous monitoring systems represent a fundamental solution for workstation ESD protection. You'll find these systems particularly appealing due to their cost-effectiveness and straightforward operation. They continuously check your entire grounding system, including the operator, wristband, and coil cord, alerting you immediately through audible and visual alarms if any issues arise. At under $80, the CM400 offers an affordable entry point into reliable ESD monitoring.
What makes these systems practical is their fixed resistor design, which eliminates the need for calibration. You won't have to worry about pre-shift testing anymore, as the system monitors your wrist strap throughout the workday. Products like the CM400 and Spartan CM300 are prime examples that meet industry standards and offer reliable protection.
However, you should be aware of certain limitations. The system's capacitance detection method isn't foolproof, especially with dry skin conditions. It's not recommended for highly sensitive processes due to potential inaccuracy issues.
You'll still need to perform periodic verifications to ascertain everything's working correctly. Despite these limitations, if you're looking for a general-use ESD monitoring solution that's easy to integrate into your workstation, single-wire continuous monitoring systems offer a solid balance of functionality and value.
Dual-Wire Workstation Protection Solutions
Reliability stands at the forefront of dual-wire workstation protection solutions, offering superior ESD monitoring compared to single-wire systems. You'll notice an immediate improvement in accuracy through ultra-low voltage signals that precisely measure the electrical resistance of wrist bands and work surfaces, ensuring continuous protection against static discharge.
What sets dual-wire systems apart is their fail-safe design featuring two independent elements in wrist strap sets. The systems utilize pulsed DC signals to prevent skin irritation while maintaining effectiveness. You won't experience the false alarms common in single-wire monitors since these systems don't rely on parasitic capacitance. They'll alert you if resistance becomes too high or too low, maintaining consistent grounding protection.
You can integrate these solutions seamlessly into your workspace, as they're compatible with most dual-wire wrist straps on the market. They're particularly valuable in environments where you're handling sensitive components or operating critical workstations.
You'll save time by eliminating the need for periodic testing while maintaining compliance with industry standards. For manufacturing, assembly, or R&D applications, you'll benefit from the real-time protection and built-in redundancy these systems provide. If one wire fails, you'll still maintain continuous grounding through the second wire.
Premium Data-Logging ESD Monitors

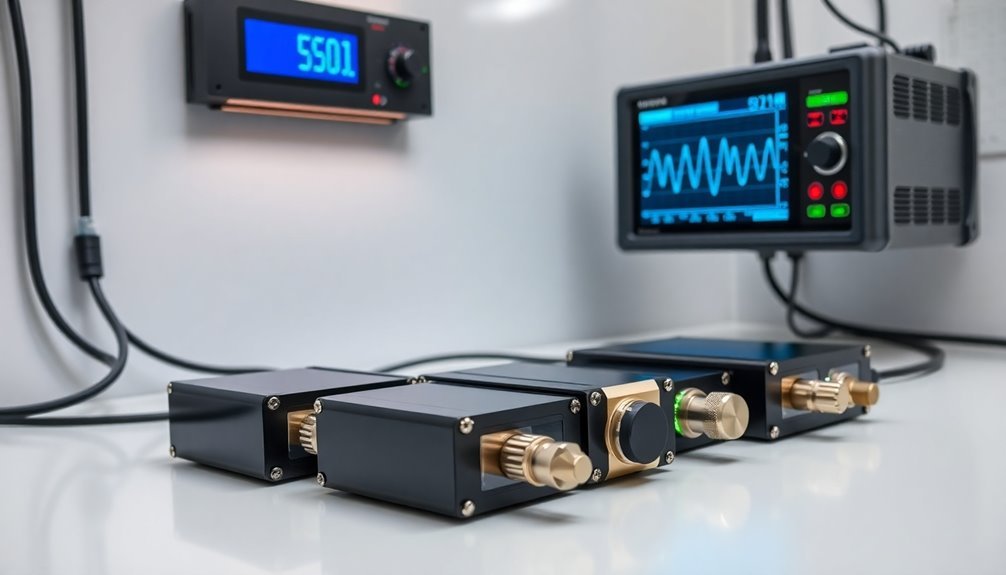

Premium data-logging ESD monitors step up your static control management with automated tracking capabilities that revolutionize workplace safety protocols.
You'll eliminate manual record-keeping as these systems automatically log wrist strap and foot grounder test results while storing extensive data about operator IDs and environmental conditions. The CT-8900 model can efficiently handle up to 30,000 employees for comprehensive testing and monitoring.
You can effortlessly generate detailed reports of resistance measurements and track ESD certification deadlines through the system's integration with popular databases like Oracle, Access, and Excel.
The monitors' advanced access control features let you regulate entry to ESD Protected Areas while documenting test results and operator identifications.
You'll appreciate the system's networking capabilities, which include LAN connectivity and data protection during network outages.
When you need to upgrade, you can add electronic door locks that respond to test results or configure alarm triggers for failed tests.
The monitors' flexibility stands out with multiple input options, from magnetic stripe to HID cards, while offering customizable resistivity limits and automatic calibration.
You'll find the browser-based software suite works seamlessly across various operating systems, making it easy to manage your ESD protection program from any connected device.
Surface Resistance Monitoring Equipment
Surface resistance meters serve as your frontline defense against static discharge, offering precise measurements from 10³ to 10¹² ohms per square for conductive and dissipative materials.
You'll find these devices provide ±10% accuracy and ±5% repeatability, ensuring reliable data for your ESD control program. The ASTM parallel bar sensing method delivers enhanced measurement accuracy.
When selecting monitoring equipment, you'll want to evaluate portable options like the 740 Surface Resistance Meter or the thorough SRM500K Digital Test Kit.
These tools comply with ASTM and ANSI/ESD S4.1 standards, making them ideal for factory audits and compliance testing. They'll measure both point-to-point (Rtt) and surface-to-ground (Rtg) resistance while monitoring ambient temperature and humidity.
Top brands like Desco, Transforming Technologies, and Simco-Ion offer test kits that include built-in resistivity probes, 5 lb disk probes, and earth leads.
You're getting automatic ranging capabilities, easy operation, and automatic power shut-off features.
For high-precision applications, you can opt for super megohm meters like the Hioki SM7110, which extends your management range up to 2 x 10¹⁹ Ω and provides superior noise resistance.
Multi-User ESD Control Centers

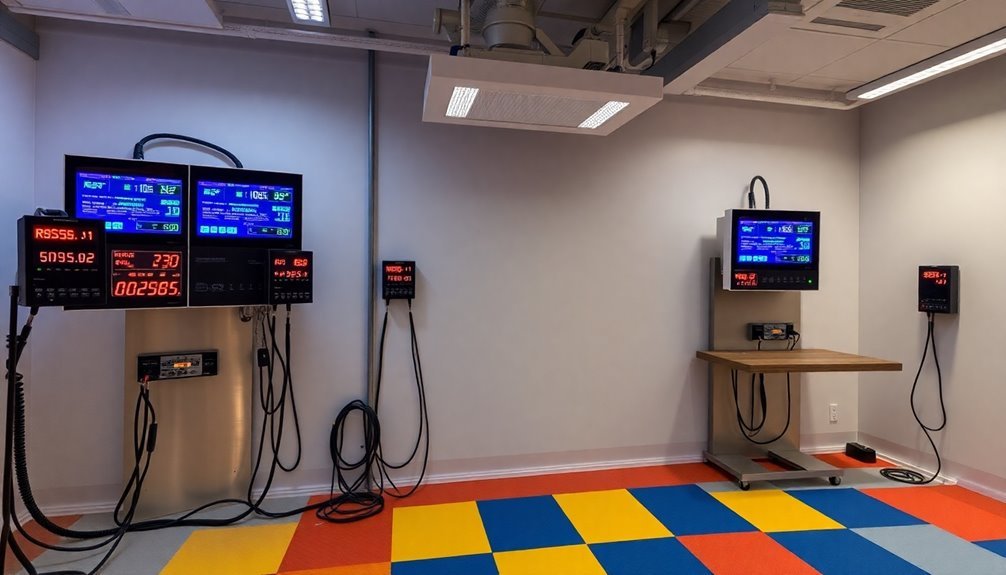

In accordance with modern ESD protection requirements, multi-user control centers integrate extensive monitoring systems that safeguard your sensitive components across multiple workstations.
These centers combine RF-ID card readers, turnstile gates, and ESD testers connected through RS485 or TCP/IP networks, guaranteeing thorough protection across your facility.
You'll benefit from real-time monitoring capabilities through multimedia display screens that show instant status updates and alerts.
When someone fails an ESD test or attempts unauthorized access, the system's alarm function immediately notifies your supervisors.
The continuous monitoring features eliminate the need for daily wrist strap and footwear testing, saving you time and resources.
Your multi-user control center should include properly configured workstations with dissipative surfaces and reliable grounding paths. The system performs tests within a resistance range of 50KΩ to 1000MΩ to ensure proper grounding.
Each station needs full ESD protection measures, including wrist straps and footwear monitoring.
You'll want to implement these controls within designated ESD Protected Areas (EPAs) where your most sensitive components are handled.
The system's management software helps you track compliance, maintain records, and guarantee that all users follow proper ESD control procedures consistently across multiple workstations.
Frequently Asked Questions
How Often Should ESD Monitoring Systems Be Recalibrated for Optimal Performance?
You'll need to recalibrate your ESD monitoring systems annually, but you should test continuous monitors semi-annually. For high-value products, you'll want to perform daily wrist strap checks or use continuous monitoring.
Can ESD Monitoring Systems Work Effectively in High-Humidity Manufacturing Environments?
Yes, you'll find ESD monitoring systems can work effectively in high humidity if they're properly calibrated and integrated with humidity control systems. You should maintain levels between 40-60% RH for peak performance.
What Backup Power Options Exist for ESD Monitoring During Power Outages?
You'll find several reliable backup power options for ESD monitoring: UPS systems provide immediate protection, battery systems offer flexible capacity, generators handle extended outages, and solar systems with storage give sustainable backup power.
Are Wireless ESD Monitoring Systems as Reliable as Wired Configurations?
No, you'll find wireless ESD monitoring systems aren't as reliable as wired ones. They face challenges with signal interference, battery limitations, and data transmission consistency, while wired systems offer more stable, continuous monitoring capabilities.
How Do Temperature Fluctuations Affect ESD Monitoring System Accuracy?
Temperature fluctuations can affect your ESD monitoring system's accuracy by altering diode performance (-1.2mV/°C) and sensor readings. You'll need proper calibration and environmental controls to maintain reliable measurements in varying conditions.
In Summary
You'll find these five ESD monitoring systems provide extensive protection for your sensitive electronic components and work environments. Whether you're looking for basic single-wire solutions or advanced multi-user control centers, investing in the right system will save you money by preventing costly damage. Don't wait for ESD incidents to occur – implement proper monitoring today to safeguard your valuable equipment and production quality.
